You might be asking youself: 'What exactly is the PAC Config Tool?'
Basically the PAC Config Tool uses a standard Web Browser to provide easy access, configuration, and maintenance of the runtime version of the PAM application running on a Windows Compact Edition computer which in turn is used to control a PLC. This 'access' is of particular importance since most PLCs are 'headless', that is, there is no keyboard and/or monitor normally connected.

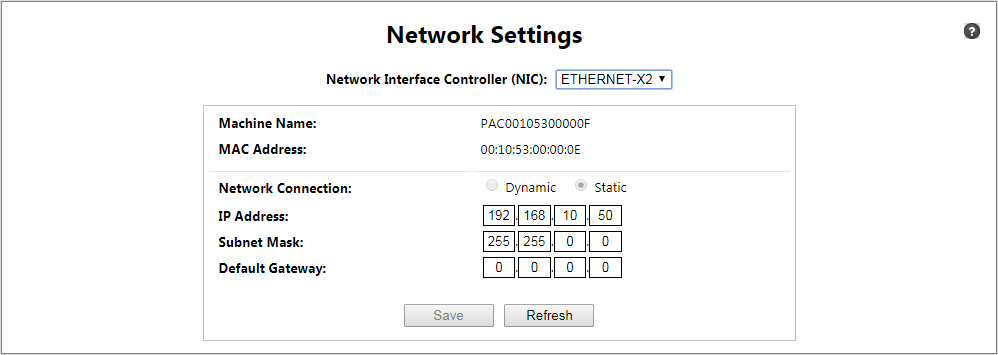

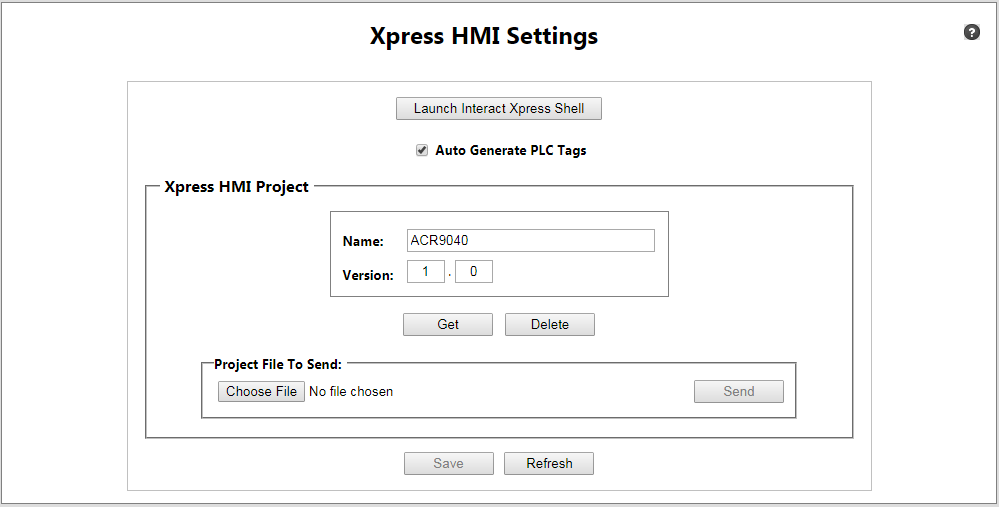

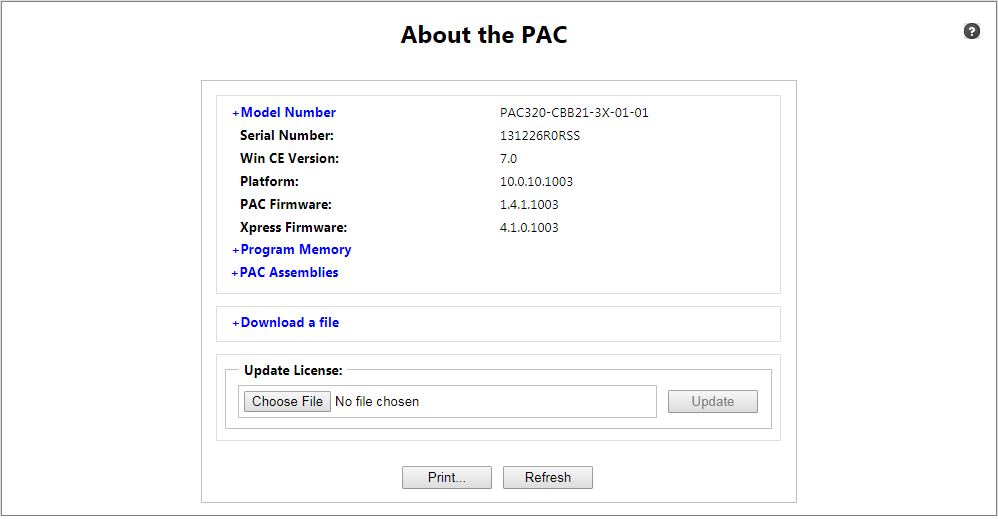

Click on the individual tabs below to display an image representing an example of the actual page content*.
* NOTE: Since this demo is NOT physically connected to an actual back-end PAC Web Server, each of the tab pages displayed is being represented by an image of the true PAC Configuration Tool page.
Normally, clicking the small HELP (?) button located at the upper right opens a context-sensitive "Help" page associated with the current tab page. For the purpose of this demonstration, clicking anywhere on the tab page (other than the tab itself) opens the associated "Help" page.
