· Rename (i.e., backup) the current “AutomationPlatform_SDK” folder to something like: “ AutomationPlatform_SDK_V[ substitute_current_version_here ] ”.

· Decompress then copy the “AutomationPlatform_SDK_V[ substitute_current_version_here ] ” folder to “Y:\Tucson\Trunk\”.

· Rename that folder to just “AutomationPlatform_SDK”.

· Check the entire previously named folder into SVN.

During development and testing it may improve install performance considerably to place checkmarks into the following 3 categories:

Initial Directory View – CODESYS Setup Sources

Expand the distribution media received from 3S (e.g. “ CODESYS Setup Sources [current_version].zip ”) into a temporary folder.

Expand the zip files inside the expanded temporary folder into individual folders as shown here:

Size: 3.82 GB (4,105,489,408 bytes)

Strip the word “CODESYS” as well as the Version Number from the end of the original names of the folders.

Before performing the next steps, make sure all the folders/files in the Y:\Tucson\trunk\Tools\InstallShield\Phase3 folder from the previous version have been checked into SVN.

Optionally:

o If migrating from a minor version such as 3.5.9, delete all the folders/files in the Phase3 folder from SVN;

otherwise just delete the following folders: Files3, Files64PLC, InstallShield, InstallShieldMergeModule, and InstallShieldMergeModuleSource s.

o Commit the changes to SVN.

Copy the folders/files from the temporary folder into the Phase3 folder.

Add the folders/files to SVN.

Commit the folders/files to SVN.

Copy in the current approximately 442Mb (463,663,104 bytes) of Parker specific folders/files

InstallShield project (‘.ism’) file version can be found inside the file’s XML by searching for “SchemaVersion “

Possible values are as follows (ours is as highlighted):

770 = IS2010

771 = IS2011

772 = IS2012

775 = IS2014

776 = IS2015

777 = IS2016

778 = IS2017

CDS_Main.ism file

Launch CDS_Main.ism to open the standard CoDeSys installer project:

Note that theproject type is “Basic MSI Project” versus what the previous PAM version was i.e., “InstallScript Project”. The former project type being a type that uses only the Windows Installer service to drive the entire installation. The later project type being that it uses InstallScript technology to drive the installation.

Select ‘Tools’ | ‘Options…’ from the main menu.

Then select the ‘Merge Modules’ tab in the ‘Options’ dialog:

InstallShield Merge Modules

Set the following string (make sure to remove the return characters) as the ‘Merge Module Locations’ in the ‘Merge Modules’ tab of the ‘Options’ dialog:

Y:\Tucson\trunk\tools\InstallShield\Phase3\PAM\MergeModules,

Y:\Tucson\trunk\tools\Installshield\Phase3\InstallShieldMergeModule,

Y:\Tucson\trunk\tools\InstallShield\Phase3\ExternalMergeModules,

C:\Program Files (x86)\InstallShield\2015\Objects,

C:\Program Files (x86)\InstallShield\2015\Modules\i386,

C:\Program Files (x86)\Installshield\2015\SetupPrerequisites,

C:\Program Files (x86)\Common Files\Merge Modules

Warning -7235

To prevent the following warning from occuring during the build:

ISEXP : warning -7235: InstallShield could not create the software identification tag because the Tag Creator ID setting in the General Information view is empty.

Software Identification Tag

Set the 'Use Software Identification Tag' setting in the General Information view to 'No'.

Failed signing temp file error

To prevent the following error from occuring when building the project:

Signing – Sign Output Files

In the CDS_Main.ism file change ‘Sign Output Files’ to ‘None’ for all ‘Product Configuration’ settings:

Signing – Sign Files in Package

In the CDS_Main.ism file change ‘Sign Files in Package’ to ‘No’ for all ‘Product Configuration’ settings:

All ‘Signing’ windows for each Configuration in Releases should appear like:

Error -7205 - Skipping file due to unmerged or missing component

To prevent the following error from occuring when building the project:

Error -7205: Skipping file [A] due to unmerged or missing component [B] in merge module

Navigate to the following folder where InstallShield is installed:

“C:\Program Files (x86)\InstallShield\2015\Support\0409”

You should see the two files called "IsMsiPkg.itp" and "IsMsiPkgLarge.itp". The file IsMsiPkg.itp is the default template for MSI’s. The file IsMsiPkgLarge.itp is a template enabling more than 32767 files in a single msm. Rename the IsMsiPkg.itp file to IsMsiPkgSmall.itp. Then rename the IsMsiPkgLarge.itp file to IsMsiPkg.itp. The build will now use the "large" MSI template.

Error -7066

To prevent the following error from occuring during the build:

Error -7066: Your project contains a reference to the Setup Prerequisite <Location of .prq file>, however this file cannot be located. Please either remove the Setup Prerequisite from your project or locate this file.

Make sure to add the following folder path:

Y:\Tucson\trunk\Tools\InstallShield\Phase3\CmRuntimeDistribution_6.70a

to the ‘ Prerequisite File Locations (Current User) ’ field located in the ‘Prerequisites’ tab of the Tools ‘Options’ dialog:

Installation Information tab

General Information node

INSTALLDIR

Set the INSTALLDIR to : [ProgramFilesFolder]Parker Hannifin\ParkerAutomationManager

INITIAL SETUP

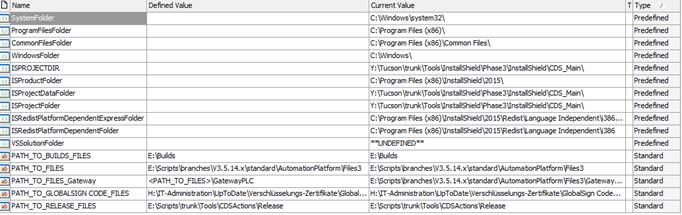

Path Variables

Make sure to modify the last four path variables in the list to reflect their correct locations.

Old Path Variables (PAM)

New Path Variables (CoDeSys)

Icons table – (PAM)

Add the highlited line to the Icon table :

Delete the following unused rows from the Icon table:

NewShortcut1_349DE1A7403745978F0FD04E7384695A.exe

NewShortcut1_9B258F89829841B7BCB0D3FFD78FAE23.exe

NewShortcut3_110C6131042C4FFB9A5C702586CE79CA.exe

ShortcutCODESYS1_24CAB68A7CD344C2852B4D7754D52053.exe

ShortcutCODESYS2x6_5EA7483CA73C44FDAD969F9274643A34.exe

ShortcutCODESYS_A36F7CB14621443AA6F02F3793C27EDD.exe

_01F62C1D_0D31_4251_B94E_9DEC99933175

_7370FF71_35FE_4B8F_95C7_0FEBBA825F7A

_849F09B0_8426_4486_9454_E53F571BF261

Shortcuts table - (CoDeSys)

Shortcuts table – (PAM)

Change the highlited lines from their old values as shown above to the new values below:

Shortcuts treeview node – (PAM)

Verify the changes made above are correct by selecting the ‘Shortcuts’ node in the ‘ViewList’ treeview

Behavior and Logic

InstallScripts

AfterCODESYSInstallation

FirewallAddCODESYS and FirewallRemoveCODESYS

Windows Firewall

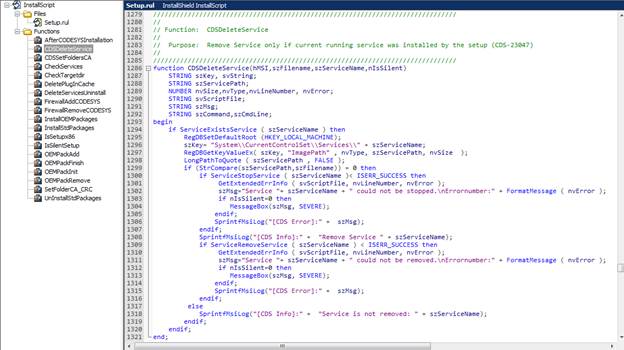

CDSDeleteService

CODESYS ServiceControl in the Windows Registry

PAM Service Control in the Windows Registry

DeleteServiceUninstall

SUPPORT FILES

DIRECTORY STRUCTURE

Files3 folders comparison

Comparison of the old ‘Files3’ folder to the new ‘Files3’ folder:

MergeModules folders comparison

Comparison of the old ‘MergeModules’ folder to the new ‘ExternalMergeModules’ folder:

RUNNING CODESYS INSTALL

Running the CODESYS 3.5.14.0 InstallShield Wizard:

Cancel Setup dialog

[CancelSetup]

Welcome dialog

[InstallWelcome]

Welcome dialog (Administrative mode)

[AdminWelcome]

License Agreement dialog

[CDSLicenseAgreement]

<PATH_TO_FILES>\Disk1\Licenses\CODESYS_EULA_Engineering_en.rtf

ReadMe dialog

[CDSReadMeDialog]

<PATH_TO_FILES>\Disk1\ReadMe\ReadMe.rtf

Destination Folder dialog

[DestinationFolder]

Change Current Destination Folder dialog

[InstallChangeFolder]

Setup Type dialog

[SetupType]

Custom Setup dialog

[CustomSetup]

Ready to Install dialog

[ReadyToInstall]

Installing dialog (showing progress part 1)

[SetupProgress]

Installing dialog (showing progress part 2)

[SetupProgress]

Installing dialog (Publising Assembly Information)

[SetupProgress]

Installing dialog (Updating component registration)

[SetupProgress]

Installing dialog (Copying new files)

[SetupProgress]

Installing dialog (Applying permission information for new objects)

[SetupProgress]

Installing dialog (Install Package CODESYS SoftMotion 4.4.0.2)

[SetupProgress]

InstallShield Wizard Completed dialog

[SetupCompleteSuccess]

OTHER DIALOGS

Welcome to Maintenance dialog

[MaintenanceWelcome]

Program Maintenance dialog

[MaintenanceType]

Services installed dialog

[CDSInstallServices]

CODESYS BUILD REPORT

Summary

Number of features:	14
Number of components:	11118
Number of merge modules:	27
Number of dynamic links:	3
Media:	Release 1
Number of files:	42266
Uncompressed files total size:	0.00 MB
Compressed files total size:	934.83 MB

Features

AEConfigurator

Basic

CDS_Exe_x86

CODESYS

CodeMeter_WiBu

ControlWin

Converter

GatewayV23

GatewayV3

OEMCustomization_CDS

OPCServer

Only_x86

SoftMotion

SubFeature

Components

AEConfiguration.exe.70BDA555_4010_4767_82F2_C690E646F8BC

ATL71_ANSI_Customer_Redist_____X86.3643236F_FC70_11D3_A536_0090278A1BB8

ATL71_Customer_Redist_____X86.3643236F_FC70_11D3_A536_0090278A1BB8

ActionEditor.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

ActionObject.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

AeConfigurator_UserGuide.pdf.70BDA555_4010_4767_82F2_C690E646F8BC

AlarmConfigurationObjects.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

AllOtherFiles.F0BF80C6_B613_4EC8_B10F_9C09974E1986

ApplicationComposer.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

ApplicationComposerAlarmGenerator.F5EF39BD_5F65_4AE6_B385_6F37265743EF

ApplicationComposerAuthoring.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

ApplicationComposerCFCGenerator.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

ApplicationComposerTrendGenerator.F5EF39BD_5F65_4AE6_B385_6F37265743EF

ApplicationObject.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

AutoDeclare.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

AxInterop.SHDocVw.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

BlackList.xml

Bookmarks.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

Breakpoints.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

BrowserCommands.F5EF39BD_5F65_4AE6_B385_6F37265743EF

BuildCommands.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

CAN_VCI.dll.1CF52CB7_7D4C_4D3F_82D9_65336C146A5B

CANopen_Profiles.F0BF80C6_B613_4EC8_B10F_9C09974E1986

CFCEditor.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

CFCObject.dll.F5EF39BD_5F65_4AE6_B385_6F37265743EF

CODESYS.exe

CODESYS.exe.config

CODESYS.exe.manifest

CODESYS.ico

CODESYSControl.cfg_CA.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSControl.cfg_temp.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSControl.ico.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSControlService.exe.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSControlService_no_Service.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSControlSysTray.exe.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSHMI.cfg_CA.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSHMI.cfg_temp.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSHMI.exe.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSSoftMotion.cfg_CA.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYSSoftMotion.cfg_temp.585DB6F3_E1F0_459D_BA36_593E823261C2

CODESYS_OPC_Server_V3_Benutzerh.63B47E6C_8C4A_42B4_976A_8E9628EFAD86

CODESYS_OPC_Server_V3_User_Guid.63B47E6C_8C4A_42B4_976A_8E9628EFAD86

More…

Dynamic links

<PATH_TO_FILES>\Disk1\Licenses	Include:
	Exclude:
<PATH_TO_FILES>\OpenSourceLicenses	Include:
	Exclude:
<PATH_TO_FILES>\3SPackages	Include:
	Exclude:

Files

*File*	*Destination*	*Component*	*Last Modified*	*Size (bytes)*	*Version*
AEConfiguration.exe	{INSTALLDIR.70BDA555_4010_4767_82F2_C690E646F8BC} [ProgramFilesFolder]CODESYS 3.5.14.0\CODESYS OPC Server 3	AEConfiguration.exe.70BDA555_4010_4767_82F2_C690E646F8BC	12/18/2017 12:31:16 PM	335600	1.0.0.3
AeConfigurator_UserGuide.pdf	{INSTALLDIR.70BDA555_4010_4767_82F2_C690E646F8BC} [ProgramFilesFolder]CODESYS 3.5.14.0\CODESYS OPC Server 3	AeConfigurator_UserGuide.pdf.70BDA555_4010_4767_82F2_C690E646F8BC	1/28/2014 1:39:24 PM	311725
Controls.dll	[GlobalAssemblyCache]	Controls_3.0.13.0.70BDA555_4010_4767_82F2_C690E646F8BC	10/26/2017 2:50:18 PM	925448	3.0.13.14

More…

Running the Application

Application folder in Start Programs menu

Application item in Application folder menu

Application item Desktop icon

First time startup dialog

CODESYS Startpage

Main Menubar (CODESYS)

Main Menubar (PAM)

File menu

CODESYS New Project… dialog

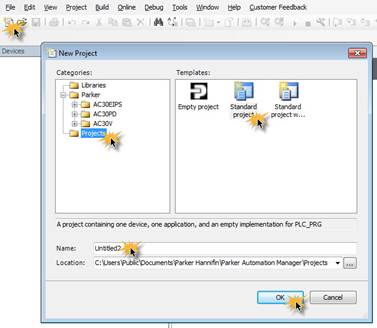

PAM New Project… dialog

Open Project… dialog

By default, this dialog opens to the User’s “Libraries/Documents” folder (a.k.a. “%USERPROFILE%\Documents”).

Help menu

CODESYS Homepage… (opened in Web Browser)

Help menu (CODESYS)

“CODESYS Homepage…” menu item is removed.

Help menu (PAM)

“PAC Online FAQ” menu item is added.

“PAC Support Page” menu item is added.

“PAC Product Page” menu item is added.

“PSD Support Page” menu item is added by the PSD plugin.

“PSD Product Page” menu item is added by the PSD plugin.

Initializing Online Help system dialog

Online Help module (CODESYS)

Online Help module (PAM)

Online Help Search (CODESYS)

Online Help Search (PAM)

PAC Online FAQ (PAM only)

PAC Support Page (PAM only)

The URL referred to by this page is: http://solutions.parker.com/pac_support

PAC Product Page (PAM only)

The URL referred to by this page is:

http://www.parkermotion.com/products/Controllers__7311__30_32_80_567_29.html

About… dialog (CODESYS)

About… dialog (PAM)

Version Info… dialog (CODESYS only)

License Info… dialog (CODESYS only)

This is new for v1.5

Acknowledgements… dialog (CODESYS only)

Customer Feedback menu (PAM only)

Feedback menu item (web page in browser)

http://www.Parkermotion.com/scripts/feedback.asp?product=PAM&version=1.5.0

Tools menu

Package Manager… dialog (CODESYS)

Package Manager… dialog (PAM)

Library Repository… dialog (CODESYS)

Library Repository… dialog (PAM)

Library Repository… dialog (PAM – Parker Hannifin)

Device Repository… dialog (CODESYS)

Note missing “Install DTM…” button, but a new “Export…” button which opens a ‘Save As’ dialog asking for a name to give the the zip file (e.g. “16_0000 1017_3.5.8.0.zip”) output pertaining to the current selection.

Device Repository… dialog (PAM)

Note difference in location of System Repository: CODESYS vs ParkerAutomationManager.

New Project dialog

Standard Project dialog

Devices treeview

Options – “Compile options” dialog (3.5.9)

Options – “Load and Save” dialog (3.5.9 and 3.5.14)

Options – “Store” dialog [3.5.14]

This is a new feature

Options dialog – “Help” [3.5.14]

This is a new feature

Options dialog – “CFC Editor”

Options dialog – ‘PAM’ tab (PAM)

Options dialog - ‘Load and Save’ tab (CODESYS)

Options dialog - ‘Load and Save’ tab (PAM)

News page: http://www.parkermotion.com/products/Controllers__7311__30_32_80_567_29.html

Homepage: http://www.parkermotion.com/globalpac

Options dialog – ‘Text Editor’ [3.5.9]

Options dialog – ‘Text Editor’ [3.5.14]

Package Manager dialog [3.5.9]

Library Repository dialog [3.5.9]

Customize dialog [3.5.9]

Customize dialog – “Command Icons” tab [3.5.14]

Customize dialog – “View” | ”Global PAC” menu [3.5.14]

Customize dialog – “Menu” | “Customer Feedback” menu [3.5.14]

Device Repository dialog [3.5.9]

Device Repository dialog [3.5.14]

Visualization Styles dialog [3.5.9]

Device window – ‘PLC Settings’ tab

Device window – ‘Communication Settings’ tab

Device window – ‘Information’ tab

PAM SYSTEM INFORMATION

=============================================================================================================================================

PAM SYSTEM INFORMATION Created on: Thursday, March 28, 2019 at 9:46 AM

=============================================================================================================================================

Default Profile Name:.................... Parker Automation Manager v1.4.0

Is Startup Profile:...................... yes

Effective Culture:....................... en-US

OS version:.............................. Microsoft Windows NT 6.1.7601 Service Pack 1

Is 64 Bit:............................... yes

Processor Count:......................... 1

Latest .NET Version:..................... v4.0.30319

=============================================================================================================================================

PAM FOLDERS

=============================================================================================================================================

Program Files Folder:.................... %ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager

Program Data Folder:..................... %ProgramData%\ParkerAutomationManager

App Data Folder:......................... %AppData%\ParkerAutomationManager

Default Projects Folder:................. %Public%\Documents\Parker Hannifin\Parker Automation Manager\Projects

Root Folder:............................. %ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\CODESYS

Common Folder:........................... %ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\CODESYS\Common

Profiles Folder:......................... %ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\CODESYS\Profiles

PlugIns Folder:.......................... %ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\CODESYS\PlugIns

=============================================================================================================================================

PAM CACHE AND OPTION FILES

=============================================================================================================================================

Plugin Cache File:....................... %ProgramData%\AP\PlugInCaches\CODESYS-F86CB45D.cache

Device Cache File:....................... %ProgramData%\ParkerAutomationManager\Devices\devicecache.xml

Library Cache File:...................... %ProgramData%\ParkerAutomationManager\Managed Libraries\cache

Option (.opt) Files:..................... %ProgramData%\ParkerAutomationManager\ParkerAutomationManager.opt

%ProgramData%\ParkerAutomationManager\ParkerAutomationManagerProjectDefaults.opt

%ProgramData%\ParkerAutomationManager\ParkerAutomationManagerUser.opt

%AppData%\ParkerAutomationManager\ParkerAutomationManager (Parker Automation Manager v1.4.0).opt.keyb

%AppData%\ParkerAutomationManager\ParkerAutomationManager (Parker Automation Manager v1.4.0).opt.menu

%AppData%\ParkerAutomationManager\ParkerAutomationManager (Parker Automation Manager v1.4.0).opt.tbar

%AppData%\ParkerAutomationManager\ParkerAutomationManager.opt

=============================================================================================================================================

PAM COMMON ASSEMBLY FILES

=============================================================================================================================================

Product File

Assembly Name Version Size Date Modified

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

PAM.exe 1.4.0.1077 155.9 KB 07/30/2018 17:40:00

PAM.Codesys.dll 1.4.0.1077 178.4 KB 07/30/2018 17:40:00

PAM.Common.dll 1.4.0.1077 192.4 KB 07/30/2018 17:40:00

PAM.NamedPipes.dll 1.4.0.1077 21.9 KB 07/30/2018 17:40:02

PAM.Service.Common.dll 1.4.0.1077 44.4 KB 07/30/2018 17:40:02

PAM.Service.Control.exe 1.4.0.1077 39.9 KB 07/30/2018 17:40:02

PAM.Tools.exe 1.4.0.1077 103.4 KB 07/30/2018 17:40:04

=============================================================================================================================================

Files having '.project', '.projectarchive', and '.libraryfile' extensions are currently associated with 'PAM'.

=============================================================================================================================================

PAM PLUGINS

=============================================================================================================================================

Plugin Name Version Guid Description

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

186 Codegenerator........................ 3.5.9.0 0b00de0e-1319-451c-9699-1ade7bda25a0 Codegenerator for 186 processors

Action Editor............................ 3.5.9.0 e3e47cdc-6ebd-472f-9090-8041104f15c6 An action editor control which can contain any implementation editor

Action Object............................ 3.5.9.0 baaf1c20-0638-447c-982f-67ffa5be4ab3 The action object

Alarm Configuration Editors.............. 3.5.9.0 b1caf0cb-cc18-4710-b4a3-b54edfc48e52 All the editors of the alarm management.

Alarm Configuration Objects.............. 3.5.9.0 3c90b672-65ce-4998-b4d1-9f5ca3acf41e All the objects of the alarm management.

Application Composer..................... 3.5.9.0 efcd1ed8-8eb7-4d92-851d-45fe1a455b79 This plug-in contains the basic application composer functionality

Application Composer Alarm Generator..... 3.5.9.0 df9e2e73-f615-4c37-b50d-679ad2a3a433 This plug-in contains an extension for the application composer: Alarm Generator

Application Composer Device Diagnosis.... 3.5.9.0 231416a4-6c71-4303-af93-1b3a6f731076 This plug-in contains an extension for the application composer: Device Diagnosis

Application Composer Sequence Editor..... 3.5.9.0 6b3f49ec-831b-4626-91d0-9cb5673ace27 This plug-in contains an extension for the application composer: Sequence Editor

Application Object....................... 3.5.9.0 1a4c1944-0e54-4497-8ebf-0a4d4f9d63e7 The application object

ARM Codegenerator........................ 3.5.9.0 07ed2588-0115-47c3-affa-eb61926d9b4e Codegenerator for ARM processors

ASi Master Configurator.................. 3.5.9.0 eac46f0c-be93-42d3-a896-6888e26db89c ASi Master Configurator

AutoDeclare.............................. 3.5.9.0 a5bc6914-568b-4aec-88fd-53a95516a79b Contains functionality for AutoDeclare.

AxisGroup Editor......................... 4.2.1.3 c4435224-39cd-45ed-a907-975f634ec402 Editor for SoftMotion axis groups

AxisGroup Object......................... 4.2.0.0 f733e945-8541-42ad-a2e7-b95d006ae093 Object that represents a SoftMotion axis group

Binary Archive........................... 3.5.9.0 5d6cb671-a13f-45ee-83af-637912133704 Contains functionality to serialize and deserialize object graphs to/from a binary stream.

Blackfin Codegenerator................... 3.5.9.0 99afa4ab-eefe-427c-b853-2fc30c05a9a2 Codegenerator for Blackfin processors

Bookmarks................................ 3.5.9.0 acb93b70-4b96-439a-aa06-4be77dcbde1b Commands enabling bookmark functionality for editors.

Breakpoints.............................. 3.5.9.0 a228b750-9d95-43af-b6a7-828efff4f738 Contains breakpoint and stepping commands, the breakpoint view, and the callstack view

BrowserCommands.......................... 3.5.9.0 06dcd183-2735-4d47-a612-72b607029714 Contains commands for source code browsing

Build Commands........................... 3.5.9.0 e92ef582-5a77-43af-85fc-1e6949f69db3 Commands for performing builds

C16x Codegenerator....................... 3.5.9.0 6516b443-cdab-41f6-a35b-633734078c06 Codegenerator for C16x processors

C28x Codegenerator....................... 3.5.9.0 47aa741c-db49-4ed3-9283-5680eda038fa Codegenerator for Texas Instruments TMS320C28x DSP CPU

Cam Editor............................... 4.2.0.0 0f4ad9d9-84cb-4d5b-b4ba-957657e0764f SoftMotion editor for electronic Cams

Cam Implementation Object................ 4.2.1.3 66d4547f-203c-4ea2-b3fb-517714dafc38 SoftMotion Cam Implementation Object

CFC Editor............................... 3.5.9.10 89d073a8-8201-4162-bf4c-7f5fd57eaeac Editor views for POUs, actions, and methods in Continuous Function Chart (CFC)

CFC Implementation Object................ 3.5.9.0 acc807af-a410-4644-b6d1-3b800224bcc9 Continuous Function Chart (CFC) implementation object

CNC Editor............................... 4.2.1.3 78ab6a30-7c7e-4ad4-b69b-f59d6d14b6ae Editor for SoftMotion CNC Programs

CNC function blocks...................... 4.2.1.3 6dbce70a-2f05-462d-b3b0-f32644908b14 SoftMotion CNC function blocks

Codegenerator for x86-64 architecture.... 3.5.9.0 c65e8ac3-6c2c-49c6-b772-bb31b2b1f2a0 Codegenerator for x86-64 architecture

CODESYS Frame............................ 3.5.9.10 55da38af-e78a-46ae-915b-7686657f6fac The user interface frame window of the programming system.

CoDeSys Project Converter................ 3.5.9.0 5cb4e9ab-7d18-4c52-adc7-42fe9cf5222a Imports old CoDeSys project files (before V3.0)

ColdFire Codegenerator................... 3.5.9.0 36ab5cff-2a55-4aff-8777-f67d0c5540a1 Codegenerator for ColdFire processors

Common Icons............................. 3.5.9.0 29f34b14-e0a5-4fa5-8737-c8baef201b6a Provides commonly used icons

Common Utilities......................... 3.5.9.0 b91f459a-c34c-4143-b3f2-4531e51d8c10 Contains some common utilities which need references to other plugins.

CoreDump................................. 3.5.9.0 f1a2b688-f1ca-4235-8a24-e19aef53f035 Create and use Core-Dumps for debugging applications

Cortex-M3 Codegenerator.................. 3.5.9.0 87348fe8-dbf9-4144-bcd3-36a3c5d7f007 Codegenerator for Cortex-M3 processors

Cross Reference View..................... 3.5.9.10 f6db1904-5280-4a3d-aab4-11491bdc71ea Shows all references of a selected variable

CSourceCodeObject........................ 3.5.9.0 46510e41-f0cb-4551-b8f1-eec725db5f17 Represents a set of source files written in C

CSourceComponentBuilder.................. 3.5.9.0 d347885e-4634-4134-9fbf-e5c33e6ade12 Bundles all information and tools necessary to build C source components for targets

DataSource Editor........................ 3.5.9.0 dd74694c-1be4-4482-88aa-17ce62cbaaca An editor for a data source

DataSource Object........................ 3.5.9.0 96e91d5c-60fb-4631-93f4-8f67e0243dc6 An object which can be used to include data sources under an application

Default Gateway client................... 3.5.9.0 ff422f0f-9077-454d-83ac-f08958449d75 Implements the CoDeSys online layer

Default Navigators....................... 3.5.9.0 707ed618-0713-49e6-a6d6-bbd287feb88e Some default navigators: Devices, POUs, Modules, All

Device CANbus............................ 3.5.9.0 a75ff553-9f1e-4298-b8d7-cdaa03ed0665 CANbus Configuration

Device CANBus Local Device............... 3.5.9.10 42881ef1-23f4-4394-8186-3617db1032ac CAN Local Device Configuration

Device Categories........................ 3.5.9.0 0ab632c1-82e0-43ce-b014-230e698d1580 The Device Categories

Device CIP............................... 3.5.9.10 71d51045-6366-4155-a1f5-f0a1a4b6230a CIP Configuration

Device Communication Editor.............. 3.5.9.0 1748b90a-28c4-471f-b0f2-9446d060a059 Editor for the communication settings of a device object

Device Editor............................ 3.5.9.0 bf8e6be2-43a8-45a1-8a24-53776e2d3cd4 Editor for the device object

Device Editor J1939...................... 3.5.9.0 180bf1aa-4c34-4e89-91d3-96da715c0ca9 J1939 Configuration

Device Ethercat.......................... 3.5.9.10 016ce8b2-c18d-4f78-aecc-6f3bcf7d8aa5 Ethercat Configuration

Device Ethernet Adapter.................. 3.5.9.0 ede87986-8d34-4baf-8653-2a8d31270889 Ethernet Adapter Configuration

Device IOLink............................ 3.5.9.0 f6874726-e52b-43cd-aa84-bd093bfc111a IO-Link support for CoDeSys

Device Modbus............................ 3.5.9.10 7e343689-9a5f-46aa-bf56-5903c4efec59 Modbus Configuration

Device Modbus Serial Slave............... 3.5.9.10 fee534fc-ad05-457d-818d-014cd259c40f Modbus Serial Slave Configuration

Device Modbus TCP Slave.................. 3.5.9.10 2081d217-b969-40d1-b1bb-3211b3024395 Modbus TCP Slave Configuration

Device NetX.............................. 3.5.9.0 3b45811d-224a-47c8-a748-24fbcb76ffa2 NetX Configuration

Device Object............................ 3.5.9.0 2a785a6d-f546-47d1-9107-6bcaa0f232cf The Device object

Device Profibus DP....................... 3.5.9.10 b8464656-5102-4236-a8fb-8f0224072058 Profibus-DP device with generic GSD converter

Device Profibus Slave.................... 3.5.9.0 89074c97-0ca3-4469-bf01-5f6ae956ef76 Profibus Slave Configuration

Device Profinet IO....................... 3.5.9.0 65ac5a36-099c-4700-b501-e56f13e0b4d3 Plug-in for Profinet IO Configurator

Device Repository........................ 3.5.9.0 f5d619ba-9237-4535-9e8f-6e5ce61f259b Repository that handles all installed devices

Device Scan.............................. 3.5.9.0 c49b0c15-ed1c-4d9b-8432-febb80bbf6cb Plug-in for Device Scan

Device Sercos3........................... 3.5.9.0 0d042b04-7e57-4ba9-bdce-975f096f79c3 Sercos3 Configuration

Device SoftMotion........................ 4.2.0.0 d329d17a-8ffe-4378-aa2d-1d6f10272c8d SoftMotion Device Configuration

Documentation Export..................... 3.5.9.0 12e05a0a-f126-4a60-9876-fa3c036e6841 Documentation export functionality

DUT Editor............................... 3.5.9.0 7a7aa487-a028-43fa-8948-f5f7b3607c54 A DUT editor control

DUT Object............................... 3.5.9.0 cfa28293-cc74-40a7-bdfd-dd24c1faf5d9 The Data Unit Type object

Edit Commands............................ 3.5.9.0 f4bd064b-5292-453d-8632-c3f5c448cea7 Commands for undo/redo and clipboard functionality

Eds-File Converter....................... 3.5.9.0 953c3763-ac4a-4b48-a6ca-2e22c3a0a992 Converter for CANopen I/O-Module Description Files (*.eds)

Engine................................... 3.5.9.10 d4407f2e-9379-4c1b-8884-bba7a5e8185f The engine is a runtime component which holds things together.

Extension SafetyOnline................... 3.5.9.0 b0819851-70c4-40c9-8ad6-fe59ee147822 SafetyOnline extension for communication over e.g. EtherCAT

External File Object..................... 3.5.9.0 336b5f67-f2b5-4c11-93df-d8a25bebb2a8 The External File object

FDT Communication Manager................ 3.5.9.0 9b5e5298-b213-40a2-b349-0315166132ba FDT Communication Component

FDT Integration.......................... 3.5.9.0 e06bb428-8a05-4249-abac-d9afba8c8c43 FDT Integration Component

File Commands............................ 3.5.9.10 a79f2b35-391c-412c-b803-a1d2e4d5713a Basic project file handling commands

Find/Replace............................. 3.5.9.10 cb99beb3-41d4-4636-a3dc-745ca6c08bcc Contains the Find and Replace features

GVL Editor............................... 3.5.9.0 c3c0212e-15bd-471d-97f3-2d0141f8fed7 An editor control for global variable lists

GVL Object............................... 3.5.9.10 30a290bb-01c9-43cf-8fd1-8c11177b74e1 The Global Variable List object

Hitachi SH Codegenerator................. 3.5.9.10 e2a16d6c-20e0-44d4-ad31-22ada0a08240 Codegenerator for Hitachi SH processors

IEC 61131-3 Text Editor.................. 3.5.9.0 cbb032e0-75c3-4bb9-bcde-b6c9ff1d6dd6 A text editor which can handle the textual languages of the IEC 61131-3 standard.

Image pool............................... 3.5.9.0 26d33842-24f3-4c11-a54f-7238896ee99b Provides functionality to add images to a pool

Input Assistant.......................... 3.5.9.0 40cfcfd4-fbba-4fa4-8b4b-6dec9ed97404 Browser for language entities like variables, calls, operators, and keywords.

Interface Editor......................... 3.5.9.0 2f6a52a3-f00f-4d58-8749-5174233352b4 An interface editor control

Interface Object......................... 3.5.9.0 a7be1fca-f1c0-4e20-9d37-c555ef61bd16 The Interface object

Item Selection Editor.................... 3.5.9.0 d664d00b-1e88-482c-bf1b-39f505dc12d4 An implementation of a generic editor for the selection of a subset of items.

Language Model Manager................... 3.5.9.10 f0b1693d-58ca-4ef3-a79f-d3cb923ff030 The codegenerator front-end

Language Model Utilities................. 3.5.9.10 9e0f51a0-d1da-42cc-ab70-094358dbaa81 This component provides access to several commonly used functions doing evaluations of the language model.

Library Manager Editor................... 3.5.9.0 f5f9ba65-d338-4467-aec4-8c9529d423c7 The library manager

Library Manager Object................... 3.5.9.0 66f42804-6b4f-4457-9bc3-dce709c2fb72 The library manager object

License Manager.......................... 3.5.9.0 cb8db54f-00e8-4a7a-8a4d-b78cbeea6143 Tool to edit licenses on a Wibu CodeMeter(TM) dongle

Logging Component........................ 3.5.9.0 030ab0a3-baa6-45d4-bc50-181dab16cbf4 Contains the implementation of the logging mechanism.

Logical Exchange GVL Editor.............. 3.5.9.0 83d9882b-8a00-4124-be6e-a23c9f9db637 Logical Exchange GVL Editor

MemoryView............................... 3.5.9.0 9276b3dc-bbc5-4800-a39e-5c6937e09d92 View a raw memory area of an IEC-Application

Message Storage.......................... 3.5.9.0 8f33458b-b754-4ae7-b805-7e841c23781a Stores categorized messages dumped by various components.

Message View............................. 3.5.9.0 492799c5-e7c6-4318-a79c-c74fcbab5419 Contains a view for dumped messages.

Method Editor............................ 3.5.9.0 bdbe31c7-0bd7-4a9a-a417-f5133e8fcd69 An editor control which is able to edit both interface methods (interface part only) and POU methods (interface and implementation part)

Method Object............................ 3.5.9.0 c1b57535-f0b7-419f-9b76-46a4f830b770 The method object

MIPS Codegenerator....................... 3.5.9.0 1eebe15a-c061-462c-807f-a9f1bf59a58e Codegenerator for MIPS processors

Navigator Control........................ 3.5.9.0 b02507b2-5231-4754-a146-78957d99f604 Contains a control for navigating through the project structure.

Network List Editor...................... 3.5.9.10 b39f2f7b-6e0c-4902-ab14-b2b85a0160db A combined editor which can display IL/LD/FBD.

Network List Object...................... 3.5.9.0 d35e1e67-69fb-49df-84d6-4d5b46453adf Implements the CoDeSys langauges for IL/LD/FBD

Nios II Codegenerator.................... 3.5.9.0 969ab52c-c00e-4e99-b69d-7bd77cfdfb3f Codegenerator for the Nios II processors

NVL Editor............................... 3.5.9.0 c724d1be-7710-4834-946a-761189eacfa1 An editor control for network global variable lists

NVL Object............................... 3.5.9.10 0d21e0be-b65b-4905-8237-f5d63ecae26f The Network Global Variable List object

Object Commands.......................... 3.5.9.10 6ae7fc36-6147-4c05-a1cb-a799b5181575 Contains basic object handling commands

Object Manager........................... 3.5.9.0 56184f7c-712c-49ca-b23c-cb85f35e8c54 Implements the CoDeSys project and object handling

Object Manager Utilities................. 3.5.9.0 413c6883-f43f-4820-a3b2-366307375252 This component provides access to several commonly used functions related to the object manager.

Online Commands.......................... 3.5.9.10 56719006-da81-45dd-8edb-c0db99178f38 Implements the CoDeSys online commands

Online Expression Interpreter............ 3.5.9.0 2ffbd975-2032-4737-84ef-adcf377f99ba Evaluates complex expressions in online mode and determines the effective value

Online Help.............................. 3.5.9.0 d63725c5-bcb3-4bf9-b2d0-f38d4d524085 The integrated online help system

Online Manager........................... 3.5.9.0 06f73429-a723-4f3c-9b49-1b8ce52a0486 Implements the CoDeSys online layer

Option Storage........................... 3.5.9.0 af94ec5a-fd92-418e-a791-b97b58a72a07 Provides an unified view to all options, regardless of where they are stored.

Package Management....................... 3.5.9.10 90d7f9d2-27c9-4789-8250-6c18262b4a0e The integrated Package Manager implementation

Package Management UI.................... 3.5.9.10 5c88ca7b-06a0-4c65-bc8e-a2578c17e839 User interface plug-in for the integrated Package Manager

PAM Branding Plugin...................... 1.4.0.1 3a4dbd46-1b92-4c22-9a2e-f5bee6366764 PAM plugin providing functionality for Branding.

PAM Developer Plugin..................... 1.4.0.1 d91ee1e8-d16b-4776-ad93-1de0d9e6e5bd PAM plugin providing functionality for use by developers.

PAM Simulation Plugin.................... 1.4.0.1 df2aa450-fae8-49c7-a498-7b1f30c11e3f PAM plugin providing functionality used for Simulation Mode.

Parker.AP.AC30Device.plugin.............. 3.6.26.1 44dd7712-82e0-4185-ab1f-c294afe826fd

Parker.AP.AC30Motor.plugin............... 3.6.26.1 b6325904-2258-4ca3-9512-a4e253940589

Parker.AP.Common.Plugin.................. 3.6.26.1 e217550c-7099-423a-8d7f-aacd99e45257 Parker System Instance for CodeSys

Parker.AP.Inverter.AC30Common.plugin..... 3.6.26.1 99d0a595-c749-4555-9590-08f370d7c290 Common AC30 code

Plc Logic Object......................... 3.5.9.0 93afde7f-fae2-4904-813a-c3d252d02699 Implementation of the Plc Logic object

PLCopenXML............................... 3.5.9.10 108e8974-276a-4f0c-9865-280e52999083 Functionality to export and import project data in the PLCopenXML format

POU Editor............................... 3.5.9.0 22801da2-108c-4463-b6e7-410cb5e86957 An editor control which provides which is splitted horizontally, with an interface editor in the top pane and an implementation editor in the bottom pane

POU Image................................ 3.5.9.0 e1b7da35-7bdb-41d4-82b5-4e538c1b1c82 Allows the user to associate images with POUs to be displayed within graphical editors.

POU Object............................... 3.5.9.0 6d7aad57-169a-4942-bce3-5a30d2057aec The POU object

PowerPC Codegenerator.................... 3.5.9.0 98b642a9-90af-4563-9358-5f007ce19839 Codegenerator for PowerPC processors

Print Engine............................. 3.5.9.10 ae39e352-e0e1-4e31-b954-8655238db190 Provides controlling functionality for printing projects

Project Archive.......................... 3.5.9.0 cc6a7b21-7322-47f7-9814-21dd48e183bf Functionality for storing and extracting a project with all its dependencies within a single archive file

Project Compare.......................... 3.5.9.0 e0ad7f8e-f4cb-4c1e-bbff-7b972fe18551 Contains functions to compare two projects with each other

Project Information Editor............... 3.5.9.10 2680452f-c443-4208-8893-06b6c5adc55b A dialog box which edits a Project Information object

Project Information Object............... 3.5.9.0 37ab439e-8423-4828-9f96-1b59849c249b The object containing user-defined project information

Property editor.......................... 3.5.9.0 3493e6f7-5c57-4266-a8b0-43862c09332f An property editor control which can contain any implementation editor

Property object.......................... 3.5.9.0 a638eb6a-e7e3-4fb1-8496-c0343943ffc2 An object for properties

Property View............................ 3.5.9.0 ff337941-370e-4176-b3d1-c64d224eb166 The property view displays properties of different objects.

PSD ServoManager Plugin.................. 1.4.0.54 09d0e7c5-48b6-49d6-93df-f6bc6d04085a rs

RecipeManagement Editor.................. 3.5.9.0 61ab8bb0-eb6d-4008-bde6-1bc5387e1654 An editor for the RecipeManagement

RecipeManagement Object.................. 3.5.9.0 001d3aae-3a36-4295-b1af-9bf8faea511d An object which can be used for RecipeManagement

Redundancy Editor........................ 3.5.9.0 68d80244-7f4d-4c65-a4a9-0566531e6456 The redundancy configuration editor

Redundancy Object........................ 3.5.9.0 00a2d14c-1a16-46f6-a68f-903e403182d2 The redundancy configuration object

Refactoring.............................. 3.5.9.0 6c08473a-63c9-4952-92a6-ff0692897de9 Refactoring service and basic functions.

Repository Elements Resolver............. 3.5.9.10 5e7a5a99-a87c-4126-84ae-68e2a445b6df An internal helper plugin that maps names to devicedescriptions and libraries

Resource Editor.......................... 3.5.9.0 0a3f2eaa-2964-4a8d-8df9-f680054bc9e0 An editor control which is able to edit Resource objects

Resource Object.......................... 3.5.9.0 b2bbffd4-a107-4a58-a3db-9c78f513d9c9 The resource object

RISC codegenerator frontend.............. 3.5.9.0 07be82cd-3680-4bcb-a957-5e99570843d7 A codegenerator frontend for RISC processores

RX Codegenerator......................... 3.5.9.0 d84a0da8-80d0-4622-81e7-25b0f0360b42 Codegenerator for RX processors

ScopeChart.plugin........................ 3.6.26.1 0b01d855-9c87-4e9c-8512-4858414cfa09 Oscilloscope for AC30/AC70

Script Driver Application Composer....... 3.5.9.0 b78ea415-7479-4a4b-bd0f-0d4f7d10cfad This plug-in contains the Python-Script-Driver for Application Composer Objects and Usage

Script Driver DeviceObject............... 3.5.9.0 7a807e44-1a24-49f1-9799-154dd253ac8e Provides DeviceObject functionality for CoDeSys scripts

Script Driver LibManObject............... 3.5.9.0 88b8f003-7842-43cf-9635-79db56e614df Provides LibManObject functionality for CoDeSys scripts

Script Driver Online..................... 3.5.9.0 30979db2-a205-4067-80b1-c99b1c3dfbf3 Provides online functionality for CoDeSys scripts

Script Driver Projects................... 3.5.9.0 9fcfbd1c-b152-4bd8-8bc2-9773bb566084 Provides iProject functionality for CoDeSys scripts

Script Driver SoftMotion................. 4.2.0.0 16c29ebf-40a2-4a16-91b5-b15f8c6247ab Provides SoftMotion functionality for CODESYS scripts

Script Driver System..................... 3.5.9.0 d55b2d52-0f1c-4eda-a109-ec19a2544978 Provides system functionality for CoDeSys plugins

Script Driver Visualization.............. 3.5.9.0 a9ac277e-1e42-4d3a-975a-34ef7a0779ef Provides scripting access functionality for CODESYS scripts to visualization related components

Script Engine Plugin..................... 3.5.9.0 dc937c18-e9f0-434d-85b7-1b8f499e378a Provides scripting functionality for CoDeSys

Security Manager......................... 3.5.9.0 a0683e9c-3382-4a78-a1da-e2e456a137b5 Implements various security-related functionalities

SFC Editor............................... 3.5.9.0 facd0fbb-ab10-4fc8-9057-8f022b0f0a3e Editor views for POUs, actions, and methods in Sequential Function Chart (SFC)

SFC Implementation Object................ 3.5.9.0 42dd28c7-a216-41a9-97e5-b68a28cea2eb Sequential Function Chart (SFC) implementation object

SFC Transition Editor.................... 3.5.9.0 d034d0bb-7542-4179-8497-853052bcdb5b A SFC transition editor control which can contain any implementation editor

SFC Transition Object.................... 3.5.9.0 79408841-4f7f-4ef4-913f-63e64d929e3c The sfc transition object

Simulation............................... 3.5.9.0 a3404fa3-559f-4fb3-9ed6-36d2a195fc36 Provides functionality for accessing the simulation features of CoDeSys

SmartCoding Options...................... 3.5.9.0 5d17b187-2367-4813-89af-a30890487b3b Options for globally enabling/disabling IntelliSense, AutoDeclare etc.

SoftMotion Plug-In....................... 4.2.1.2 4ffccb81-ba39-42c0-bf1b-6bb623c824a2 Basic SoftMotion functions (SoftMotion version, version profiles)

ST Editor................................ 3.5.9.0 b0c1f5f5-6e5a-4924-92b7-95b8e0953b29 Editor view factories for POUs, actions, and methods in Structured Text (ST)

ST Implementation Object................. 3.5.9.0 a6fb21c6-efb1-4987-a6bc-f2dc1752c254 Structured Text (ST) implementation object

ST Snippet Provider...................... 3.5.9.0 923f87e0-cc1f-4ec9-a759-0bbea15ac87b Contains a service class which provides the language model snippet for a ST-like language.

Standard Project Wizard.................. 3.5.9.0 ae30b345-aacb-43a4-8fde-4214cc576211 This wizard appears when the user creates a new project and selects the 'Standard Project' template

Static Analysis Manager.................. 3.5.9.0 568ba54b-4638-4ad1-af1c-dd9209a939fd A manager for static analysis tools

Store.................................... 3.5.9.0 c105ac21-b519-4753-9982-b541bcb69c91 Browser based plugin component for the online store

Symbol Configuration Editor.............. 3.5.9.0 cbeea127-2aa5-4162-85db-e26272030ee9 Contains the editor for the symbol configuration object

Symbol Configuration Object.............. 3.5.9.10 5769c554-e6ad-41fe-aafc-aa722b1c8e13 Contains the application symbol configuration object

Tabular Declaration Editor............... 3.5.9.10 10748bcb-f9a1-4ff1-a534-46e73ccfe984 An editor implementation which provides a tabular view on declaration parts.

Target Settings.......................... 3.5.9.0 3a25a2c0-5c79-483b-8c9c-0c7e5a7a075d The Target Settings system component

Target Settings Documentation Export..... 3.5.9.0 7ae4ae00-401f-49c5-8d34-62b0186c75bd Target Settings Documentation export functionality

Task Config Utilities.................... 3.5.9.0 5ed28305-4127-4040-bf0e-84ff3843dd50 This component provides access to several commonly used functions related to the task config object.

Task Editor.............................. 3.5.9.0 8a14b6a9-5b0a-4440-880b-aad1f0aa6478 The task editor

Task Object.............................. 3.5.9.0 edb57405-2414-4d5a-b9fe-9258ad4eae0a The task object

TaskConfig Editor........................ 3.5.9.0 41df01ad-5852-45a9-a472-3c9dba5fc33d An editor control that allows for the configuration of a projects tasks

TaskConfig Object........................ 3.5.9.0 b4f729fb-467c-4d38-8ceb-709fd262b4de The task configuration object

Text Document............................ 3.5.9.0 06876139-91d7-4c06-91cc-a27b856619c5 An implementation of a generic text document with line IDs.

Text Editor Basics....................... 3.5.9.0 97fdbcee-afa9-427f-853e-0fafecdb478b Basic functionality for text editors.

Text lists for multi language support.... 3.5.9.10 d291c27a-a794-4a0c-9580-d4d3afa4d73d Text lists for multi language support

ToolBox View............................. 3.5.9.0 d932d289-4f0a-4f76-b0e7-6d03f7a7e776 Contains a ToolBox view.

Trace Editor............................. 3.5.9.10 8f05b65d-c5e1-4ab8-99d2-df0e9ea43f55 Implements a Trace Editor

Trace Object............................. 3.5.9.10 119fa4a3-8dba-4595-986d-aabba8700524 Contains the Trace Object

Trend Recording Editors.................. 3.5.9.0 afe8900e-f053-4ece-83aa-932a84b004b0 All the editors of the trend recording.

Trend Recording Objects.................. 3.5.9.0 1b06fe26-53d1-44f4-b578-47373eb3eb1b All the objects of the trend recording.

TriCore Codegenerator.................... 3.5.9.0 e3a5a72b-4afa-472c-85d7-ccbbb0f526ba Codegenerator for TriCore processors

Undo Manager............................. 3.5.9.0 107b569d-c9c3-4ee0-a26b-f5b5b72ca878 A reusable implementation of the IUndoManager interface.

Unit Conversion Editor................... 3.5.9.0 448dbf96-87b2-41c3-923c-fb01e9c54d0e Editor to manage unit conversions

Unit Conversion Object................... 3.5.9.0 6bce30ee-c8aa-4914-9b19-b00199995f25 Object for unit conversion

User Management.......................... 3.5.9.0 81652516-4967-4f8a-9ff5-36e3150c622d This is the core user and rights management system which allows controlling access to functions and objects.

User Management UI....................... 3.5.9.0 8f72f97a-04ba-467b-a8ca-2fe57ef1801e The user interface for the user and rights management.

Variable Declaration Object.............. 3.5.9.0 0ff7f246-3b78-4a0c-9dc1-94105ddd563b Variable declaration object

Version Compatibility Manager............ 3.5.9.0 ab86dd0d-2a90-4e30-90e9-a2cff706c245 Implements certain functionality to control version handling in CoDeSys projects

Visu Generated Code...................... 3.5.9.0 554d49de-db05-4357-b471-1c9ec51cdc04 Interaction between the generated code of the visualization and the standard assemblies.

Visual Element Implementation Extensions. 3.5.9.0 5c890cf8-1c05-4325-90b8-3cc3e85e54ca IComplexElementCall implementation for visual elements for the integrated visualization.

Visualelement Repository................. 3.5.9.10 c0c95d25-7d59-431e-a9f4-2caeb961f812 The repository for visual elements.

Visualization editor..................... 3.5.9.10 01bcdb4a-ca85-4787-a389-8185653db706 Visualization editor

Visualization element.................... 3.5.9.0 d1a72f78-4813-48a1-86d0-91334865f04f Visualization element

Visualization object..................... 3.5.9.10 afcd5446-4914-4fe7-bb78-9bffeb70fd17 Visualization object

Visualization Paint Commands............. 3.5.9.0 a3e8ffd6-e48c-45ed-9844-81d95f71df06 Contains all available Paintcommands that can be used to draw onto a Graphics Context

Visualization Styles..................... 3.5.9.0 30fbd6bb-13d1-407c-985e-df09dd731941 Contains the storage, management and editing mechanisms for styles used by the visualization.

VisualizationManagement editor........... 3.5.9.10 c5b6e3bc-15ac-4a78-8b8b-3bed641b398d VisualizationManagement editor

Watchlist View........................... 3.5.9.0 7f2108af-1d6d-46c6-8106-7bd1190bb96a Contains a view for monitoring expressions.

Workspace Editor......................... 3.5.9.0 ae3bb56d-5b98-4706-8cb6-5bfeaa00ade0 Contains an editor for project-specific settings.

x86 Codegenerator........................ 3.5.9.10 4d549abe-432f-4f5a-9a63-c999e08184b1 Codegenerator for x86 processors

XML Archive.............................. 3.5.9.0 63cc50c1-aabf-4ca8-9654-b3822c231126 Contains functionality to serialize and deserialize object graphs to/from an XML stream.

xPIC Codegenerator....................... 3.5.9.0 5c97662f-3c99-44b7-912b-9398c9b97999 Codegenerator for xPIC processors

=============================================================================================================================================

PAM REGISTRY SETTINGS (Services)

--------------------------------------------------------------------------------------------------------------

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\CODESYS Gateway V3]

DisplayName = CODESYS Gateway V3 Version 3.5.9.10

Description = Gateway Server as a Windows service to connect to CODESYS programmable devices

ObjectName = LocalSystem

ImagePath = "%ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\GatewayPLC\GatewayService.exe"

ErrorControl = 1

Start = 2

Type = 16

WOW64 = 1

--------------------------------------------------------------------------------------------------------------

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\CODESYS Control Win V3]

DisplayName = CODESYS Control Win V3 Version 3.5.9.10

Description = SoftPLC based on a Windows service that is running in user mode

ObjectName = LocalSystem

ImagePath = %ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\GatewayPLC\CODESYSControlService.exe

ErrorControl = 0

Start = 3

Type = 16

WOW64 = 1

DependOnService = CodeMeter.exe

--------------------------------------------------------------------------------------------------------------

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\CODESYS ServiceControl]

DisplayName = CODESYS ServiceControl Version 3.5.9.10

Description = Service for starting/stopping the services of CODESYS Control Win V3 and CODESYS Gateway Service V3.

ObjectName = LocalSystem

ImagePath = "%ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\GatewayPLC\ServiceControl.exe"

ErrorControl = 1

Start = 2

Type = 16

WOW64 = 1

--------------------------------------------------------------------------------------------------------------

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\PAM_Service_Control]

DisplayName = PAM Service Control

Description = Service for managing other services such as 'CODESYS Control Win V3', 'CODESYS Gateway Service V3', etc.

ObjectName = LocalSystem

ImagePath = "%ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\PamServiceControl\PAM.Service.Control.exe"

ErrorControl = 1

Start = 2

Type = 16

WOW64 = 1

--------------------------------------------------------------------------------------------------------------

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\PAM_Xpress_Service]

(This registry key does not exist.)

--------------------------------------------------------------------------------------------------------------

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\PAM_EOE_Service]

DisplayName = PAM EOE Service

Description = Service used by PAM for managing EOE, etc.

ObjectName = LocalSystem

ImagePath = "%ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\PamEoeService\PAM.EOE.Service.exe"

ErrorControl = 1

Start = 3

Type = 16

WOW64 = 1

=============================================================================================================================================

PAM REGISTRY SETTINGS (AutoRuns)

--------------------------------------------------------------------------------------------------------------

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Run]

GatewaySysTray = "%ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\GatewayPLC\GatewaySysTray.exe"

CODESYSControlSysTray = "%ProgramFiles(x86)%\Parker Hannifin\ParkerAutomationManager\GatewayPLC\CODESYSControlSysTray.exe"

=============================================================================================================================================

INSTALLSHIELD PROPERTY MANAGER

Properties are represented in script using square brackets. For example: [CDS_PROFILE]

Name	Value	Comment
ALLUSERS	1
ARPPRODUCTICON	ARPPRODUCTICON.exe
ARPURLINFOABOUT	{CDS_IDS_GI_URL}
AgreeToLicense	No
ApplicationUsers	AllUsers
CDSAgreeToReadMe	No	do not change here
CDSFolderCA_CRCSum	B3293264	CRCFolder for cfg files
CDSFolder_x64	CODESYS 3.5.14.0	DefaultFolder for x64 Setup (to be set before build)
CDSFossHtml	FOSS components in CODESYS.html
CDSIsSetupx86	1	Setup x86=1 \| Setup x64 =0 (is set via Custom Action at begin for x64)
CDSKillGateway23	Gateway.exe	Kill Gateway V23 see CustomAction CDSKillGateway23
CDSMaxLenPath	130	(to be set before build)
CDSPACKSTD	CODESYS SoftMotion 4.4.0.2	Seperate packages with ; (to be set before build)
CDSTargetdirOK	1	do not change here
CDS_DOSERVICE_RUN	0	1=old services already runnning \| 0=no services are running
CDS_INSTALLPACKSILENT	1	0=Install OEMPackages with PackageManager Dialogs \| 1=Install OEMPackages in SilentMode
CDS_INSTALL_SERVICES	1	0=do not install services \| 1= install Services
CDS_LIB_Profile	features.libraryprofile	Library Profile (OEM_adaptable)
CDS_LIB_ProfileReleased	released_features.libraryprofile	Library Profile with old entries (OEM_adaptable)
CDS_OEMPACKCOUNT	0	do not change here (is set via CustomAction CDSOEMPackInit/CDSOEMPackFinish)
CDS_OEMPACKINITCOUNT	0	do not change here (is set via CustomAction CDSOEMPackInit/CDSOEMPackFinish)
CDS_PROFILE	CODESYS V3.5 SP14	(to be set before build)
CDS_PSEXE	CODESYS.exe	(OEM_adaptable)
CDS_PSICO	CODESYS.ico	(OEM_adaptable)
CDS_PSNAME	CODESYS	(OEM_adaptable)
CDS_RE_DEP	0	do not change here
DWUSINTERVAL	30
DWUSLINK	CE0C976F8E9BE7DF4EACA0CFC9CC978F8E9C708F69CCF7B8CECB900FE94B80FF99BBA08889AC
DefaultUIFont	Tahoma8
DialogCaption	InstallShield for Windows Installer
DiskPrompt	[1]
DisplayNameCustom	{IDS__DisplayName_Custom}	Custom
DisplayNameMinimal	{IDS__DisplayName_Minimal}	Minimal
DisplayNameTypical	{IDS__DisplayName_Typical}	Typical
Display_IsBitmapDlg	1
ErrorDialog	SetupError
INSTALLLEVEL	100
ISCHECKFORPRODUCTUPDATES	1
ISENABLEDWUSFINISHDIALOG
ISSHOWMSILOG
ISTerminateProcesses	GatewaySysTray.exe;CODESYSControlSysTray.exe;CodeMeterCC.exe;Gateway.exe	Kill Systrays, CodeMeterCC (RC-4356) see CustomAction CDSKillSysTrays
ISVROOT_PORT_NO	0
IS_COMPLUS_PROGRESSTEXT_COST	{IDS_COMPLUS_PROGRESSTEXT_COST}	Costing COM+ application: [1]
IS_COMPLUS_PROGRESSTEXT_INSTALL	{IDS_COMPLUS_PROGRESSTEXT_INSTALL}
IS_COMPLUS_PROGRESSTEXT_UNINSTALL	{IDS_COMPLUS_PROGRESSTEXT_UNINSTALL}
IS_PREVENT_DOWNGRADE_EXIT	{IDS_PREVENT_DOWNGRADE_EXIT}
IS_PROGMSG_TEXTFILECHANGS_REPLACE	{IDS_PROGMSG_TEXTFILECHANGS_REPLACE}
IS_PROGMSG_XML_COSTING	{IDS_PROGMSG_XML_COSTING}
IS_PROGMSG_XML_CREATE_FILE	{IDS_PROGMSG_XML_CREATE_FILE}
IS_PROGMSG_XML_FILES	{IDS_PROGMSG_XML_FILES}
IS_PROGMSG_XML_REMOVE_FILE	{IDS_PROGMSG_XML_REMOVE_FILE}
IS_PROGMSG_XML_ROLLBACK_FILES	{IDS_PROGMSG_XML_ROLLBACK_FILES}
IS_PROGMSG_XML_UPDATE_FILE	{IDS_PROGMSG_XML_UPDATE_FILE}
IS_SQLSERVER_AUTHENTICATION	0
IS_SQLSERVER_DATABASE
IS_SQLSERVER_PASSWORD
IS_SQLSERVER_SERVER
IS_SQLSERVER_USERNAME	sa
InstallChoice	AR
Manufacturer	{COMPANY_NAME}	CODESYS GmbH
MsiLogging	voicewarmup
PIDTemplate	12345<###-%%%%%%%>@@@@@
PROGMSG_IIS_CREATEAPPPOOL	{IDS_PROGMSG_IIS_CREATEAPPPOOL}	Creating application pool %s
PROGMSG_IIS_CREATEAPPPOOLS	{IDS_PROGMSG_IIS_CREATEAPPPOOLS}
PROGMSG_IIS_CREATEVROOT	{IDS_PROGMSG_IIS_CREATEVROOT}
PROGMSG_IIS_CREATEVROOTS	{IDS_PROGMSG_IIS_CREATEVROOTS}
PROGMSG_IIS_CREATEWEBSERVICEEXTENSION	{IDS_PROGMSG_IIS_CREATEWEBSERVICEEXTENSION}
PROGMSG_IIS_CREATEWEBSERVICEEXTENSIONS	{IDS_PROGMSG_IIS_CREATEWEBSERVICEEXTENSIONS}
PROGMSG_IIS_CREATEWEBSITE	{IDS_PROGMSG_IIS_CREATEWEBSITE}
PROGMSG_IIS_CREATEWEBSITES	{IDS_PROGMSG_IIS_CREATEWEBSITES}
PROGMSG_IIS_EXTRACT	{IDS_PROGMSG_IIS_EXTRACT}
PROGMSG_IIS_EXTRACTDONE	{IDS_PROGMSG_IIS_EXTRACTDONE}
PROGMSG_IIS_EXTRACTDONEz	{IDS_PROGMSG_IIS_EXTRACTDONE}
PROGMSG_IIS_EXTRACTzDONE	{IDS_PROGMSG_IIS_EXTRACTDONE}
PROGMSG_IIS_REMOVEAPPPOOL	{IDS_PROGMSG_IIS_REMOVEAPPPOOL}
PROGMSG_IIS_REMOVEAPPPOOLS	{IDS_PROGMSG_IIS_REMOVEAPPPOOLS}
PROGMSG_IIS_REMOVESITE	{IDS_PROGMSG_IIS_REMOVESITE}
PROGMSG_IIS_REMOVEVROOT	{IDS_PROGMSG_IIS_REMOVEVROOT}
PROGMSG_IIS_REMOVEVROOTS	{IDS_PROGMSG_IIS_REMOVEVROOTS}
PROGMSG_IIS_REMOVEWEBSERVICEEXTENSION	{IDS_PROGMSG_IIS_REMOVEWEBSERVICEEXTENSION}
PROGMSG_IIS_REMOVEWEBSERVICEEXTENSIONS	{IDS_PROGMSG_IIS_REMOVEWEBSERVICEEXTENSIONS}
PROGMSG_IIS_REMOVEWEBSITES	{IDS_PROGMSG_IIS_REMOVEWEBSITES}
PROGMSG_IIS_ROLLBACKAPPPOOLS	{IDS_PROGMSG_IIS_ROLLBACKAPPPOOLS}
PROGMSG_IIS_ROLLBACKVROOTS	{IDS_PROGMSG_IIS_ROLLBACKVROOTS}
PROGMSG_IIS_ROLLBACKWEBSERVICEEXTENSIONS	{IDS_PROGMSG_IIS_ROLLBACKWEBSERVICEEXTENSIONS}
ProductCode	{E8463E30-AF93-4106-92A8-49CE6BE9C861}
ProductID	none
ProductLanguage	1033
ProductName	CODESYS 3.5.14.0
ProductVersion	3.5.14.00
ProgressType0	install
ProgressType1	Installing
ProgressType2	installed
ProgressType3	installs
RebootYesNo	Yes
ReinstallModeText	omus
RestartManagerOption	CloseRestart
SHOWLAUNCHPROGRAM	0
SecureCustomProperties	ISFOUNDNEWERPRODUCTVERSION;USERNAME;COMPANYNAME;ISX_SERIALNUM;SUPPORTDIR;INSTALLDIR;LAUNCHPROGRAM;CDSFOLDER_CONVERTER;CDSFOLDER_OPC;CDSFOLDER_CODESYS_COMMON;CDS_RE_DEP;CDSAgreeToReadMe;CDSFOLDER_TEMP;CDS_INSTALL_SERVICES;CDS_OEMPACK_SELECTED_YES;CDS_OEMPACK_SELECTED_NO;; 1;DOTNETVERSION20;CDSFOLDERCA_SMX64;CDSFOLDER_CODESYS_LAC
SetupType	Typical
UpgradeCode	{2F030A3D-8AD8-432F-B5F7-0CD953987D48}
_IsMaintenance	Change
_IsSetupTypeMin	Typical

INSTALLSHIELD STRING EDITOR

CDS_ACTTXT_UNINSTALLPACKAGE	Uninstallation of Packages
CDS_DLG_INSTALLSRV_DESC	There are already running Gateway and/or CODESYS Control Win V3 Services from another install...
CDS_DLG_INSTALLSRV_OPT1	&install files and install services
CDS_DLG_INSTALLSRV_OPT1_DESC
CDS_DLG_INSTALLSRV_OPT2	install &files, but do not install as service
CDS_DLG_INSTALLSRV_TITLE	{&MSSansBold8}Gateway Service - CODESYS Control Win V3 Service
CDS_DLG_LICENSE_FOSS	<a href="[SUPPORTDIR]\\OpenSourceLicenses\\[CDSFossHtml]">Open Source Licenses</a>
CDS_DLG_OEM_ADD	Add >>
CDS_DLG_OEM_DESC	{&Tahoma8}Select an entry in the left list and click Add or select an entry from the right list and...
CDS_DLG_OEM_EMPTYLIST
CDS_DLG_OEM_MARKERA	A
CDS_DLG_OEM_MARKERB	B
CDS_DLG_OEM_REMOVE	<<Remove
CDS_DLG_OEM_TEXT	{&Tahoma8}Select the packages you want to install (right list), and deselect the packages you do not...
CDS_DLG_OEM_TITLE	{&MSSansBold8}Select Packages
CDS_DLG_README_ACCEPT	I have read the information
CDS_DLG_README_DESC	Please read the following information carefully.
CDS_DLG_README_NOTREAD	I have not read the information yet
CDS_DLG_README_PRINT	&Print
CDS_DLG_README_TITLE	{&MSSansBold8}Very important information
CDS_IDS_AECONFIG_DISPLAY	AE Configurator
CDS_IDS_BASIC_DISPLAY	Basic
CDS_IDS_CODEMETER_DISPLAY	Feature_CodeMeter_WiBu
CDS_IDS_CODESYS_DESC	CODESYS ... Next generation object-oriented programming tool for IEC 61131-3 PLC programs.
CDS_IDS_CODESYS_DISPLAY	CODESYS
CDS_IDS_CODESYS_ONLYX64_DISPLAY	Only_x64
CDS_IDS_CODESYS_ONLYX86_DISPLAY	Only_x86
CDS_IDS_CODESYS_SUB_DISPLAY	SubFeature
CDS_IDS_CODESYSEXE_ONLYX64_DISPLAY	CODESYS_EXE_Only_x64
CDS_IDS_CODESYSEXE_ONLYX86_DISPLAY	CODESYS_EXE_Only_x86
CDS_IDS_CONTROL_64_DESC	CODESYS Soft-PLC for Windows PCs (7/8/10) without realtime guarantee
CDS_IDS_CONTROL_64_DISPLAY	CODESYS Control Win 64
CDS_IDS_CONTROL_DESC	CODESYS Soft-PLC for Windows PCs without realtime guarantee
CDS_IDS_CONTROL_DISPLAY	CODESYS Control Win V3
CDS_IDS_CONTROL_SERVICE_DESC	Windows soft realtime runtime system based on a Windows service that is running with REA...
CDS_IDS_CONVERTER_DESC	CODESYS Converter ... For project conversion of projects created with former releases of CODES...
CDS_IDS_CONVERTER_DISPLAY	CODESYS Converter
CDS_IDS_EXT_LIB_ARG	--project:"%1" --profile="[CDS_PROFILE]"
CDS_IDS_EXT_LIB_DESC	CODESYS library
CDS_IDS_EXT_LIB_NAME	&Open with CODESYS
CDS_IDS_EXT_PACKAGE_ARG	--profile="[CDS_PROFILE]" --install="%1"
CDS_IDS_EXT_PACKAGE_DESC	CODESYS Package
CDS_IDS_EXT_PACKAGE_NAME	&Open with CODESYS Package Manager
CDS_IDS_EXT_PROJECT_ARG	--project:"%1" --profile="[CDS_PROFILE]"
CDS_IDS_EXT_PROJECT_DESC	CODESYS project
CDS_IDS_EXT_PROJECT_NAME	&Open with CODESYS
CDS_IDS_EXT_PROJECTARCHIVE_ARG	--projectarchive:"%1" --profile="[CDS_PROFILE]"
CDS_IDS_EXT_PROJECTARCHIVE_DESC	CODESYS project archive
CDS_IDS_EXT_PROJECTARCHIVE_NAME	&Open with CODESYS
CDS_IDS_GATEWAY23_DESC	CODESYS Gateway V2.3 ... Gateway (communication layer) for CODESYS V2.3
CDS_IDS_GATEWAY23_DISPLAY	CODESYS Gateway V2.3
CDS_IDS_GATEWAY_64_DESC	CODESYS Gateway ... Next generation gateway (communication layer) for CODESYS V3
CDS_IDS_GATEWAY_64_DISPLAY	CODESYS Gateway 64
CDS_IDS_GATEWAY_DESC	CODESYS Gateway ... Next generation gateway (communication layer) for CODESYS V3
CDS_IDS_GATEWAY_DISPLAY	CODESYS Gateway
CDS_IDS_GI_URL	http://www.codesys.com
CDS_IDS_HMI_DISPLAY	CODESYS HMI
CDS_IDS_INI_CANOPEN	CANopen Profiles
CDS_IDS_INI_DEVICES	Devices
CDS_IDS_INI_DUMMY	DummyForUTF-8
CDS_IDS_INI_FILEPATH	FilePath
CDS_IDS_INI_GATEWAYPLC	GatewayPLC
CDS_IDS_INI_GSDML_DB	GSDML_DB
CDS_IDS_INI_J1939	J1939 Databases
CDS_IDS_INI_LIBDOC	Library Documentation
CDS_IDS_INI_LICENSES	Licenses
CDS_IDS_INI_MANAGEDLIBRARIES	Managed Libraries
CDS_IDS_INI_SECTION_PROFILE	[CDS_PROFILE]
CDS_IDS_INI_SECTION_SYSFILE	SysFile
CDS_IDS_INI_VISUALELEMENTS	Visual Elements
CDS_IDS_INI_VISUALIZATIONSTYLES	Visualization Styles
CDS_IDS_INSTALLCONDITION_ADMIN	You need administrator rights for this installation to continue.
CDS_IDS_INSTALLCONDITION_DEVINSTALLED	A development installation of CODESYS V3 was found.\\nPlease deinstall this fir...
CDS_IDS_INSTALLCONDITION_IE5	Internet Explorer 5 or greater needs to be installed for this installation to continue.
CDS_IDS_INSTALLCONDITION_OS	[ProductName] requires that your computer is running Windows7 SP1 or higher.
CDS_IDS_OEMCDS_DISPLAY	OEMCustomization CDS
CDS_IDS_OPC_DESC	CODESYS OPC DA Server
CDS_IDS_OPC_DISPLAY	CODESYS OPC DA Server
CDS_IDS_REMOVE_REPLOCINI	RepositoryLocations.ini
CDS_IDS_REMOVE_SETUPCODESYSINST	SetupCODESYSInst.log
CDS_IDS_REPOSITORYLOCATION	REPOSI~1.INI\|RepositoryLocations.ini
CDS_IDS_SC_CODESYS	CODESYS without Profile
CDS_IDS_SC_CODESYSWITHPROFILE	CODESYS V3.5 SP14
CDS_IDS_SC_DISPLAY	ShortCuts
CDS_IDS_SC_FOLDER	CODESYS
CDS_IDS_SC_FOLDER_CODESYS64	CODESYS 64
CDS_IDS_SC_FOLDER_CODESYS	CODESYS
CDS_IDS_SC_FOLDER_CONTROL	CODESY~1\|CODESYS Control Win V3
CDS_IDS_SC_FOSS	FOSSCO~1\|FOSS Components in CODESYS
CDS_IDS_SC_PACKAGEMANAGER	PACKAG~1\|Package Manager
CDS_IDS_SECTION_DEFAULT	Default
CDS_IDS_SETUPINFO	SetupInfo
CDS_IDS_SETUPINFO_ICONFILE	IconFile
CDS_IDS_SETUPINFO_IDEEXECUTABLE	IDEExecutable
CDS_IDS_SETUPINFO_PSEXE	[CDS_PSEXE]
CDS_IDS_SETUPINFO_PSICO	[CDS_PSICO]
CDS_IDS_SETUPINFO_STARTMENU	StartMenuFolder
CDS_IDS_SETUPINFO_STARTMENUCODESYS64	[CDS_StartMenuFolderCODESYS64]
CDS_IDS_SETUPINFO_STARTMENUCODESYS	[CDS_StartMenuFolderCODESYS]
CDS_IDS_SETUPINFOXML	SetupInfo.xml
CDS_IDS_SOFTMOTION_DISPLAY	CODESYS SoftMotion
CDS_INSTALLCONDITION_VBSCRIPT	There is a problem with your VBScript registration.\\nPlease repair it and restart this...
COMPANY_NAME	CODESYS GmbH
DN_AlwaysInstall	Always Install
IDS_UITEXT_Folder	Fldr\|New Folder
IDS_UITEXT_GB	GB
IDS_UITEXT_KB	KB
IDS_UITEXT_MB	MB
IDS_UITEXT_Required	Required
IDS_UITEXT_TimeRemaining	Time remaining: {[1] min }{[2] sec}
IDS_UITEXT_Volume	Volume
IIDS_UITEXT_FeatureUninstalled	This feature will remain uninstalled.

MERGE MODULES

CDS_MM_AEConfig_1.0.0.4.msm

CDS_MM_CDS_AddFiles_3.5.14.10.msm

CDS_MM_CDS_LAC_3.5.14.10.msm

CDS_MM_CDS_Interfaces_3.5.14.10.msm

CDS_MM_ControlWin_3.5.14.10.msm

Services – CODESYS Control Win V3 service

InstallScript - SETUP.rul

This script is from previous version PAM 3.5.1

prototype DetectDotNet();

prototype DetectOldPamVersion();

prototype ParkerInstallEoEService( BOOL );

prototype ParkerInstallPAMServiceControl( BOOL );

prototype ParkerInstallTapDriver( BOOL );

prototype ParkerStopPAMServiceControl();

prototype ParkerStopEoEService(

prototype BOOL IsOSX64();

//---------------------------------------------------------------------------

// DetectDotNet

// PAM -- Detects whether a legitimate version of .Net is installed on this pc.

//---------------------------------------------------------------------------

function DetectDotNet()

STRING szKey,szName,svValue,szMsg;

NUMBER nvType,nvSize,nvVar;

begin

RegDBSetDefaultRoot(HKEY_LOCAL_MACHINE);

szKey = "SOFTWARE\\Microsoft\\NET Framework Setup\\NDP\\v4\\Full";

szName = "Release";

nvType = REGDB_NUMBER;

svValue = "";

if(RegDBGetKeyValueEx (szKey, szName, nvType, svValue, nvSize ) < 0) then

//The required version of .NET is not installed

MessageBox("A required component Microsoft .Net Framework 4.5.1 or greater is not installed.\r\nPlease download and install from www.microsoft.com.

Aborting installation.",SEVERE);

abort;

else

StrToNum (nvVar, svValue);

if(nvVar < DOTNET_VERSION_4_5_1) then

//The required version of .NET is not installed

MessageBox("A required component Microsoft .Net Framework 4.5.1 or greater is not installed.\r\nPlease download and install from www.microsoft.com.

Aborting installation.",SEVERE);

abort;

endif;

end;

//---------------------------------------------------------------------------

// DetectOldPamVersion

// PAM -- Detects whether an outdated version of PAM (i.e., 1.0.0 to 1.2.1) exists.

//---------------------------------------------------------------------------

function DetectOldPamVersion()

STRING szTitle, svEnvVar, szPath, szFormat, sz12Folder, sz13Folder;

NUMBER nResult;

begin

sz12Folder = "{1348D7AE-2F12-4434-990B-603FF700B1B4}";

sz13Folder = "{B28B21EC-2FF0-4B49-89FC-D1D80C42E621}";

if (GetEnvVar("ProgramFiles(x86)", svEnvVar) != 0) then

if (GetEnvVar("ProgramFiles", svEnvVar) != 0) then

return 0;

endif;

// Make sure there is not already a 1.3.x folder.

szPath = svEnvVar ^ "\\InstallShield Installation Information\\" ^ sz13Folder;

if (ExistsDir(szPath) != EXISTS) then

// Check for a 1.2.x folder.

szPath = svEnvVar ^ "\\InstallShield Installation Information\\" ^ sz12Folder;

if (ExistsDir(szPath) = EXISTS) then

szTitle = "PAM Installer";

szFormat = "An older version of PAM has been detected. Would you like to update it to PAM 1.3.0.1?\n" +

"(Note that all projects, archives, and other user-customized files will remain intact.)";

nResult = SprintfBox(MB_YESNO, szTitle, szFormat);

if (nResult != IDYES) then

abort;

endif;

end;

//---------------------------------------------------------------------------

// ParkerInstallPAMServiceControl

// Used to install or uninstall PAM.Service.Control.exe

//---------------------------------------------------------------------------

function ParkerInstallPAMServiceControl(Install)

STRING szCmdLine;

STRING szStatusMessage;

STRING szFilePath;

begin

Enable(STATUSEX);

szFilePath = INSTALLDIR ^ "PamServiceControl\\PAM.Service.Control.exe";

if(Install)then

//Uninstall all Old Parker PAM Service Control

szCmdLine = "/u";

szStatusMessage = "Uninstalling all Old Parker PAM Service Control...";

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker PAM Service Control Uninstall");

//Install Latest Parker PAM Service Control.

szCmdLine = "/i";

szStatusMessage = "Installing Latest Parker PAM Service Control...";

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker PAM Service Control Install");

else

//Uninstall Parker PAM Service Control.

szCmdLine = "/u";

szStatusMessage = "Uninstalling Parker PAM Service Control...";

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker PAM Service Control Uninstall");

endif;

////////////////////////////////////////////////////////////////////

Disable(STATUSEX);

end;

//---------------------------------------------------------------------------

// ParkerInstallEoEService

// Used to install or uninstall ParkerEoEService.

//---------------------------------------------------------------------------

function ParkerInstallEoEService(Install)

STRING szCmdLine;

STRING szStatusMessage;

STRING szFilePath;

begin

Enable(STATUSEX);

szFilePath = INSTALLDIR ^ "PamEoeService\\PAM.EoE.Service.exe";

if(Install)then

//Uninstall all Old Parker EoE Service

szCmdLine = "/u";

szStatusMessage = "Uninstalling all Old Parker EoE Service...";

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker EoE Service Uninstall");

//Install Latest Parker EoE Service.

szCmdLine = "/i";

szStatusMessage = "Installing Latest Parker EoE Service...";

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker EoE Service Install");

else

//Uninstall Parker EoE Service.

szCmdLine = "/u";

szStatusMessage = "Uninstalling Parker EoE Service...";

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker EoE Service Uninstall");

endif;

////////////////////////////////////////////////////////////////////

Disable(STATUSEX);

end;

//---------------------------------------------------------------------------

// ParkerInstallTapDriver

// Used to install or uninstall ParkerTapDriver.

//---------------------------------------------------------------------------

function ParkerInstallTapDriver(Install)

STRING szCmdLine;

STRING szStatusMessage;

STRING szFilePath;

begin

Enable(STATUSEX);

if(Install)then

//Uninstall all Old Parker Tap Drivers

szCmdLine = "";

szStatusMessage = "Uninstalling all Old Parker Tap Drivers...";

if(IsOSX64())then

szFilePath = INSTALLDIR ^ "ParkerTapDriver\\amd64\\Uninstall.bat";

else

szFilePath = INSTALLDIR ^ "ParkerTapDriver\\i386\\Uninstall.bat";

endif;

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker Tap Driver Uninstall");

//Install Latest Parker Tap Driver.

szCmdLine = "";

szStatusMessage = "Installing Latest Parker Tap Driver...";

if(IsOSX64())then

szFilePath = INSTALLDIR ^ "ParkerTapDriver\\amd64\\install.bat";

else

szFilePath = INSTALLDIR ^ "ParkerTapDriver\\i386\\install.bat";

endif;

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker Tap Driver Install");

else

//Uninstall Parker Tap Driver.

szCmdLine = "";

szStatusMessage = "Uninstalling Parker Tap Driver...";

if(IsOSX64())then

szFilePath = INSTALLDIR ^ "ParkerTapDriver\\amd64\\Uninstall.bat";

else

szFilePath = INSTALLDIR ^ "ParkerTapDriver\\i386\\Uninstall.bat";

endif;

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker Tap Driver Uninstall");

endif;

////////////////////////////////////////////////////////////////////

Disable(STATUSEX);

end;

//---------------------------------------------------------------------------

// ParkerStopPAMServiceControl

// Used to Stop PAMServiceControl.

//---------------------------------------------------------------------------

function ParkerStopPAMServiceControl()

STRING szCmdLine;

STRING szStatusMessage;

STRING szFilePath;

begin

Enable(STATUSEX);

szFilePath = INSTALLDIR ^ "PamServiceControl\\PAM.Service.Control.exe";

if Is(PATH_EXISTS, szFilePath) = EXISTS then

szCmdLine = "/stop";

szStatusMessage = "Stopping Old Parker PAMServiceControl...";

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker PAMServiceControl Stop");

endif;

////////////////////////////////////////////////////////////////////

Disable(STATUSEX);

end;

//---------------------------------------------------------------------------

// StopParkerEoEService

// Used to Stop ParkerEoEService.

//---------------------------------------------------------------------------

function ParkerStopEoEService()

STRING szCmdLine;

STRING szStatusMessage;

STRING szFilePath;

begin

Enable(STATUSEX);

szFilePath = INSTALLDIR ^ "PamEoeService\\PAM.EoE.Service.exe";

szCmdLine = "/stop";

szStatusMessage = "Stopping Old Parker EoE Service...";

SetStatusWindow( 80, szStatusMessage);

LongPathToShortPath(szFilePath);

LaunchAppAndWait (szFilePath, szCmdLine, LAAW_OPTION_HIDDEN | LAAW_OPTION_WAIT );

SetStatusWindow( 100, szStatusMessage ^ "Completed Parker EoE Service Stop");

////////////////////////////////////////////////////////////////////

Disable(STATUSEX);

end;

//---------------------------------------------------------------------------

// IsOSX64

// Check if OS is x86 or x64

//---------------------------------------------------------------------------

function BOOL IsOSX64()

begin

if(SYSINFO.bIsWow64 > 0)then

//MessageBox("Computer is runing under x64.", INFORMATION);

return TRUE;

else

//MessageBox("Computer is runing under x86.", INFORMATION);

return FALSE;

endif;

end;

DIRECT EDITOR - Directory

AdminToolsFolder	TARGETDIR	.:Admint~1\|AdminTools	0
ALLUSERSPROFILE	TARGETDIR	.:ALLUSE~1\|All Users	0
AppDataFolder	TARGETDIR	.:APPLIC~1\|Application Data	0
CDS_StartMenuFolder	ProgramMenuFolder	Parker Hannifin	1
CDS_StartMenuFolderCODESYS	CDS_StartMenuFolder	Parker Automation Manager	1
CDS_StartMenuFolderCODESYS64	CDS_StartMenuFolder	Parker Automation Manager 64	1
CDSFOLDER_CODESYS	INSTALLDIR	CODESYS	0
CDSFOLDER_CODESYS_COMMON	CDSFOLDER_CODESYS	Common	0
CDSFOLDER_CODESYS_LAC	CDSFOLDER_CODESYS	LACBIN~1\|LacBinaries	0
CDSFOLDER_CODESYS_OPTIONS	CDSFOLDER_CODESYS	Options	0
CDSFOLDER_CODESYS_PLUGINS	CDSFOLDER_CODESYS	PlugIns	0
CDSFOLDER_CODESYS_PROFILES	CDSFOLDER_CODESYS	Profiles	0
CDSFOLDER_CODESYS_SETTINGS	CDSFOLDER_CODESYS	Settings	0
CDSFOLDER_CODESYS_TEMP	CDSFOLDER_CODESYS	temp	0
CDSFOLDER_CONVERTER	INSTALLDIR	CODESY~1\|CODESYS Converter	0
CDSFOLDER_GATEWAYPLC	INSTALLDIR	GATEWA~1\|GatewayPLC	0
CDSFOLDER_LICENSES	INSTALLDIR	Licenses	0
CDSFOLDER_OPC	INSTALLDIR	CODESY~1\|CODESYS OPC Server 3	0
CDSFOLDER_PACKAGES	INSTALLDIR	Packages	0
CDSFOLDER_TEMP	INSTALLDIR	Temp	0
CDSFOLDERCA	CommonAppDataFolder	CODESYS	0
CDSFOLDERCA_CTRLWIN	CDSFOLDERCA	CODESY~1\|CODESYSControlWinV3	0
CDSFOLDERCA_CTRLWINX64	CDSFOLDERCA	CODESY~1\|CODESYSControlWinV3x64	0
CDSFOLDERCA_GATEWAY	CDSFOLDERCA	CODESY~1\|CODESYSGatewayV3	0
CDSFOLDERCA_HMI	CDSFOLDERCA	CODESY~1\|CODESYSHMIWinV3	0
CDSFOLDERCA_HMIX64	CDSFOLDERCA	CODESY~1\|CODESYSHMIWinV3x64	0
CDSFOLDERCA_RTV	CDSFOLDERCA	CODESY~1\|CODESYSRemoteTargetVisualization	0
CDSFOLDERCA_RTVX64	CDSFOLDERCA	CODESY~1\|CODESYSRemoteTargetVisualizationx64	0
CDSFOLDERCA_SM	CDSFOLDERCA	CODESY~1\|CODESYSControlSoftMotionWinV3	0
CDSFOLDERCA_SMX64	CDSFOLDERCA	CODESY~1\|CODESYSControlSoftMotionWinV3x64	0
CommonAppDataFolder	TARGETDIR	.:Common~1\|CommonAppData	0
CommonFiles64Folder	TARGETDIR	.:Common64	0
CommonFilesFolder	TARGETDIR	.:Common	0
DesktopFolder	TARGETDIR	.:Desktop	3
FavoritesFolder	TARGETDIR	.:FAVORI~1\|Favorites	0
FontsFolder	TARGETDIR	.:Fonts	0
GlobalAssemblyCache	TARGETDIR	.:Global~1\|GlobalAssemblyCache	0
INSTALLDIR	PAMFOLDER_PAM	.	0
ISCommonFilesFolder	CommonFilesFolder	Instal~1\|InstallShield	0
LocalAppDataFolder	TARGETDIR	.:LocalA~1\|LocalAppData	0
MyPicturesFolder	TARGETDIR	.:MyPict~1\|MyPictures	0
PAMFOLDER_PAM	PAMFOLDER_PARKER	PARKER~1\|ParkerAutomationManager	0
PAMFOLDER_PARKER	ProgramFilesFolder	PARKER~1\|Parker Hannifin	0
PersonalFolder	TARGETDIR	.:Personal	0
PrimaryVolumePath	TARGETDIR	.:Primar~1\|PrimaryVolumePath	0
ProgramFiles64Folder	TARGETDIR	.:Prog64~1\|Program Files 64	0
ProgramFilesFolder	TARGETDIR	.:PROGRA~1\|program files	0
ProgramMenuFolder	TARGETDIR	.:Programs	3
SendToFolder	TARGETDIR	.:SendTo	3
StartMenuFolder	TARGETDIR	.:STARTM~1\|Start Menu	3
StartupFolder	TARGETDIR	.:StartUp	3
System16Folder	TARGETDIR	.:System	0
System64Folder	TARGETDIR	.:System64	0
SystemFolder	TARGETDIR	.:System32	0
TARGETDIR		SourceDir	0
TempFolder	TARGETDIR	.:Temp	0
TemplateFolder	TARGETDIR	.:ShellNew	0
USERPROFILE	TARGETDIR	.:USERPR~1\|UserProfile	0
WindowsFolder	TARGETDIR	.:Windows	0
WindowsVolume	TARGETDIR	.:WinRoot	0

REGISTRY ENTRIES

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\App Paths\PAM.exe]

@="C:\\Program Files (x86)\\Parker Hannifin\\ParkerAutomationManager\\CODESYS\\Common\\PAM.exe"

"Path"="C:\\Program Files (x86)\\Parker Hannifin\\ParkerAutomationManager\\CODESYS\\Common\\"

Adding OEM PACKAGES to PAM installer

In the “Behavior and Logic” section of the ‘Installation Designer’ tree view, select then expand the ‘Support Page’ node.

Add a new folder called ‘Packages’ to the “English (United States)” node located just under “Support Files”.

In the ‘Files’ pane to its right, right click and select “Add Files…” context menu item. A dialog will be displayed. Select all the package files located in the “Y:\Tucson\trunk\Tools\InstallShield\Phase3\PAM\Packages” folder.

INSTALLSHIELD PROJECT REGISTRY SETTINGS

Copy the following text into a file; name it something like ‘InstallShieldProjectSettings.reg’; then

merge it into the registry:

Windows Registry Editor Version 5.00

[HKEY_CURRENT_USER\Software\InstallShield\22.0\Professional\Project Settings]

"IDEFirstRunCEIP"="8/11/2016 2:45:30 PM"

"AutoSelectFeatureOrComponent"=dword:00000001

"Best Practices Help"=dword:00000000

"CleanupEmptyComponents"=dword:00000001

"CleanupEmptyDirectories"=dword:00000000

"CreateInFldForNewPrj"=dword:00000001

"CreateUniqueSQLCxnProps"=dword:00000000

"Default IS Today"=dword:00000000

"DefaultBuildCub"="none"

"DefaultComExtractionSetting"=dword:00000000

"DefaultMMBuildCub"=""

"DirEdtReferentialIntegrity"=dword:00000001

"EnableUpdateService"=dword:00000000

"FileItemsCount"=dword:000003e8

"HelpTop"=dword:00000000

"ISDotNetScanAtBuild"=dword:00000002

"ISSetAllUsersGen"=dword:00000001

"MMFileFindMatchDest"=dword:00000000

"MMFileFindMatchVersion"=dword:00000000

"MMSearchPath"=" Y:\\Tucson\\trunk\\Tools\\InstallShield\\Phase3\\PAM\\MergeModules, Y:\\Tucson\\trunk\\tools\\Installshield\\Phase3\\InstallShieldMergeModule, Y:\\Tucson\\trunk\\tools\\InstallShield\\Phase3\\ExternalMergeModules, C:\\Program Files (x86)\\InstallShield\\2015\\Objects,C:\\Program Files (x86)\\InstallShield\\2015\\Modules\\i386,C:\\Program Files (x86)\\Installshield\\2015\\SetupPrerequisites,C:\\Program Files (x86)\\Common Files\\Merge Modules"

"MemberCEIP"=dword:00000000

"NewPrjDefaultTab"=dword:00000002

"PEFileExtensions"="EXE|DLL|OCX|VXD|CHM|HLP|TLB|AX"

"Path Variables"=dword:00000002

"PrerequisiteSearchPath"="Y:\\Tucson\\trunk\\Tools\\InstallShield\\Phase3\\SetupPrerequisites,Y:\\Tucson\\trunk\\Tools\\InstallShield\\Phase3\\CmRuntimeDistribution_6.70a,C:\\Program Files (x86)\\InstallShield\\2015\\SetupPrerequisites"

"Project Location"="C:\\InstallShield 2015 Projects"

"ProjectTemplatesUpToDate"=dword:00000001

"PromptForScriptLexiconConversion"=dword:00000001

"PromptOnComponentDel"=dword:00000001

"PromptWhenCreatingNewFeatureAndComponents"=dword:00000001

"RemindCEIP"=dword:00000000

"SaveAsCreateInFldForNewPrj"=dword:00000000

"SaveAsNewGUIDs"=dword:00000000

"SaveAsUpdSettings"=dword:00000001

"SelfRegistrationMethod"=dword:00000000

"ShowAllCustomActions"=dword:00000001

"ShowDirectoryNodesIndividually"=dword:00000000

"ShowExportCompWizWelcomeDlg"=dword:00000001

"ShowFromAllRepos"=dword:00000001

"ShowImportFragWizWelcomeDlg"=dword:00000001

"ShowInstallDirPredefined"=dword:00000000

"StopAtFirstErr"=dword:00000000

"UninstallOnRun"=dword:00000001

"UseXmlForNewMsiPrjs"=dword:00000000

"ValidateAtBuild"=dword:00000000

Windows Installer Error 2721

Summary

Discussion on run time error 2721

Symptoms

When running an installation created with InstallShield Express, the following error message may occur:

Internal Error 2721.CustomActionName

CustomActionName is the name of the custom action in the installation causing the error message.

Cause

Error 2721 occurs if the installation is unable to find the file being launched by the custom action in the Binary table or within the project. Several factors within the project in conjunction with custom actions can lead to this error.

Cause 1

The custom action file has a long name, or the name of the EXE or DLL being launched via the custom action contains unusual characters, such as space or underscore (_).

Cause 2

The custom action has been deleted from the project, but it is still referenced in the project somewhere internally. This can happen if entries pertaining to the custom action do not get deleted completely from the project.

Cause 3

In some cases, a Minor Upgrade, Small Update, Minor Upgrade Patch or Small Update Patch has been observed to corrupt all binary table streams. The precise cause for this is not known, and as such in some cases it may be necessary to switch to a Major Upgrade.

Resolution

Resolution 1

Rename the file being launched by the custom action. If the name of the file is unusually long, rename it to 8.3 format. This means rename the file to a name less than or equal to 8 characters with an extension less than or equal to 3 characters, e.g., testfile.exe as opposed to myNewtestfile.exe.

If the filename contains special characters, rename the file so that it does not include any special characters.

Resolution 2

For Express 3.54 and higher, delete all instances of the custom action using ORCA, a Microsoft Utility.
For Express 3.5, upgrade to SP4, migrate your project, and then delete all instances of the custom action using ORCA. ORCA will not open projects created in older versions of Express.

Download ORCA by following the instructions in Knowledge Base article What is ORCA and How Can I Acquire It?
Open your project file in ORCA.
Select Edit > Find or press Ctrl+F. The Find dialog opens.
In Find what, type the name of the custom action listed in error 2721.
Delete all instances of the custom action.
Select File > Save.
Reopen your project in Express and rebuild it.

Express 3.5x users can upgrade to Express 3.5 SP4 by selecting Help >Update InstallShield .

Build Error 1024 may appear in projects with Error 2721. For more information, see Knowledge Base article Build Error -1024

For .exe files, the custom action is not sequenced properly in the project. Custom actions being invoked After File Transfer or After COM Registration result in this error in versions of Express prior to Express 3.53. This issue has been fixed in Express 3.53 and higher.

In versions of Express earlier than 3.53, using a pre-defined directory property, such as [INSTALLDIR], [ProgramFiles], or [SUPPORTDIR], in the File Name property of a custom action causes this error. Using a pre-defined directory in the File Name property is only supported in Express 3.53 and later.

Note: The Source Location property must be set to Installed With the Product in Express 3.53 and later to use a pre-defined directory.

INSTALLSHIELD HELP LIBRARY

https://helpnet.flexerasoftware.com/installshield21helplib/installshield21helplib.htm

Configuring InstallShield

There may be the need to change the following file:

C:\Program Files (x86)\InstallShield\2015\Support\0409\IsMsiPkg.itp

By default a single msi file (which includes the cab files) is set to accept a maximum of 20K files. This number needs to be much higher for the typical PAM install.

This setting change is accomplished by replacing the file above with the file IsMsiPkgLarge and renaming it.

ISSUES

After including the AC30 package and attempting to performing an install on the Test VM an error dialog such as this is displayed:

Note of caution: In actuality, the error dialog gets displayed directly behind the InstallShield installer dialog thus causing the user to believe the installation is still taking process when in fact it has been suspended.
